                             "Dynamo L" - Generator - Alternator 12V/100W - 150W






                 Der Ersatz für die Originale Lucas E3LM Lichtmaschinen

                                       Nr.: 20012, 20013A, 20033, 20034





Einbaumöglichkeiten bei folgenden Motorrädern:

MARKE:                                                                                                                BAUJAHR:



ARIEL

- Ariel 350 ccm NG "De Luxe"                                                                                        1950 - 1951

- Ariel 350 ccm NH "Red Hunter"                                                                                1950 - 1957

- Ariel 500 ccm HS MK. III Scrambles "Red Hunter"                                              1957

- Ariel 500 ccm "VG"                                                                                                       1949 - 1950

- Ariel 500 ccm VH "Red Hunter"                                                                                 1949 - 1957

- Ariel 500 ccm VHA "Red Hunter"                                                                              1949 - 1957

- Ariel 500 ccm VCH "Competition"                                                                            1950 - 1953

- Ariel 600 ccm S.V "VB"                                                                                                1950 - 1957

B.S.A

- B.S.A 350 ccm "B31"                                                                                                      1950 - 1957

- B.S.A 350 ccm "B32"                                                                                                     1950 - 1957

- B.S.A 500 ccm "B33"                                                                                                     1950 - 1957

- B.S.A 500 ccm "B34"                                                                                                     1950 - 1955

- B.S.A 500 ccm "M20"                                                                                                   1950 - 1955

- B.S.A 500 ccm "M33"                                                                                                    1950 - 1957

- B.S.A 600 ccm S.V "M21"                                                                                             1950 - 1957

DOUGLAS

- Douglas 350 ccm Twin Mk. III                                                                                   1949 - 1954

- Douglas 350 ccm Twin Mk. V                                                                                     1949 - 1954

- Douglas 350 ccm "80 Plus"                                                                                         1949 - 1954

- Douglas 350 ccm "90 Plus"                                                                                         1949 - 1954

ENFIELD

- Enfield 350 ccm "Bullet"                                                                                              1950 - 1955

- Enfield 350 ccm " Clipper"                                                                                           1956 - 1957

- Enfield 500 ccm "Bullet"                                                                                              1953 - 1955

- Enfield 500 ccm "J2"                                                                                                    1950 - 1955

- Enfield 500 ccm Twin                                                                                                   1954 - 1956

- Enfield 700 ccm "Super Meteor"                                                                                1955

MAISON SAROLEA

- Maison Sarolea Export                                                                                             1951 - 1956

- Maison Sarolea 500 ccm                                                                                               1949

NORTON

- Norton 350 ccm "50"                                                                                                     1956 - 1957

- Norton 500 ccm "ES2"                                                                                                  1950 - 1957

- Norton 500 ccm S.V "16H"                                                                                          1950 - 1954

- Norton 500 ccm S.V "18"                                                                                             1950 - 1954

- Norton 600 ccm S.V "Big Four"                                                                                  1950 - 1954

- Norton 600 ccm "19"                                                                                                    1955 - 1957

PANTHER

- Panther 600 ccm "100"                                                                                                 1951 - 1957

- Panther 650 ccm "M120"                                                                                             1959 - 1966

PUSHLEY

- Pushley "Pelican Rickshaw"
















































Das Original Produkt von der Firma: PPHU  J. Tomaszewski - Polska





Made in Poland





Ø Die Masse:

• Länge zusammen mit Ritzel  180,00 mm
• Breite  76,00 mm

Ø Technische Daten:

• Spannung 12V
• 3 Phasen - Drehstromgenerator
• Ladestrom 14,4V ohne Last bei 1200U/min
• Ladestrom 14,4V unter Last 60W bei 2100U/min
• Masse Minus ( - )

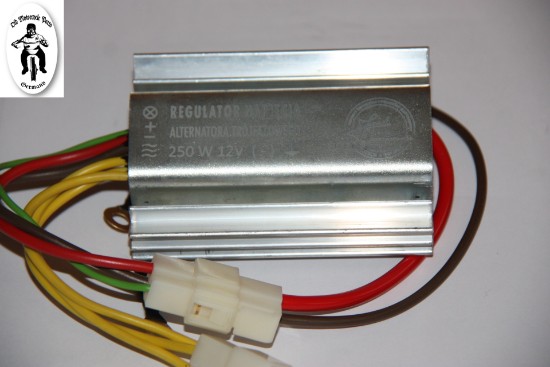

• Elektronische Regler 12V/250W genau für das "Dynamo L" abgestimmt.

Ø Technische Anforderungen:

• Batterie 12V ab 3,2Ah bis 14Ah
• Masse Minus ( - )
• Gel oder Säure Batterie
• Hauptscheinwerfer 12V - 45/55W
• Standlicht vorne Minimum 12V/5W
• Abblendlicht hinten max. 12V/5W
• Stop max. 12V/10W
• Tacho Minimum 12V/2W
• Sicherung 15A bei der Lieferung enthalten

►Bei 150W Dynamo L sind die Technische Anforderungen entsprechend anzupassen.
    Zb. Hauptscheinwerfer 12V - 60/65W

►Unser Batterie Empfehlung: Yuasa YB 12AL-A2

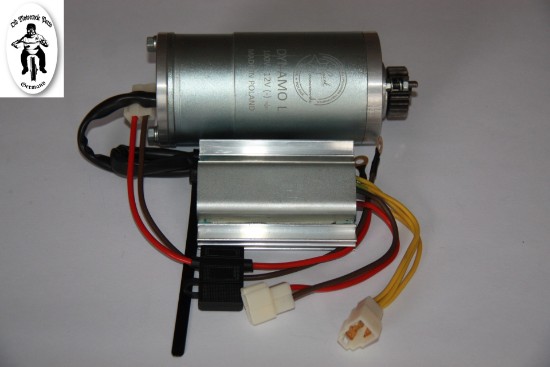

► In Lieferung enthalten:

- Dynamo L
- Elektronische Regler
- Ritzel
- Diverse Stecker
- Sicherungen
- Garantiekarte
- Betriebsanleitung
- Verpackung


Preise:

Art.Nr: 00 5659 33L 61 - Dynamo L - 12V/100W - 420,00 €


Art.Nr: 00 5660 33L 61 - Dynamo L - 12V/150W - 440,00 €


Art.Nr: 00 5658 33L 62 - ( Ersatz ) Elektronische Regler - 55,00 €


Art.Nr: 00 5659 33L 61Z - ( Ersatz ) Ritzel - 38,00 €


Garantie:

2 Jahre Hersteller Garantie ab Kaufdatum.


Betriebsanleitung zu Downloaden:
