MODERNE TECHNIK IM LOOK VON GESTERN

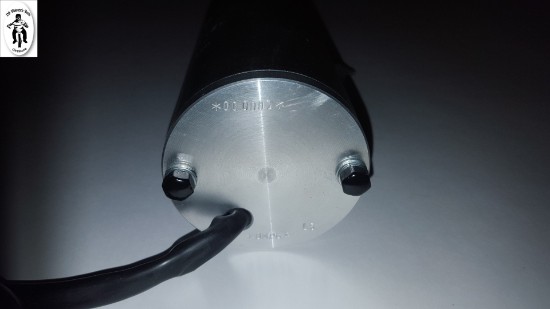

                                  "Dynamo L/5" - Generator - Alternator 12V/100W






                        Der Ersatz für die Originale Lucas E3L - Lichtmaschinen

                                                   Nr.: 20009, 20010, 20035, 20037





Einbaumöglichkeiten bei folgenden Motorrädern:

MARKE :                                                                                                              BAUJAHR:

A.J.S

- A.J.S 500 ccm Twin "20"                                                                                              1949 - 1957

- A.J.S 600 ccm Twin "30"                                                                                              1956 - 1957

ARIEL

- Ariel 500 ccm Twin KG "De Luxe"                                                                             1949 - 1951

- Ariel 650 ccm Twin FH "Huntmaster"                                                                      1954 - 1957

B.S.A

- B.S.A 250 ccm "C11"                                                                                                      1949 - 1953

- B.S.A 500 ccm Twin "A7"                                                                                             1950 - 1957

- B.S.A 500 ccm Twin "A7 S.T"                                                                                      1950 - 1957

- B.S.A 500 ccm Twin "A7 S.S"                                                                                      1950 - 1957

- B.S.A 650 ccm Twin A10"Golden Flash"                                                                   1950 - 1957

- B.S.A 650 ccm A10 " Road Rocket"                                                                            1955 - 1957

EHRLICH

- Ehrlich 350 ccm "Two-stroke"                                                                                    1952 - 1955

MATCHLESS

- Matchless 500 ccm Twin "G9"                                                                                    1949 - 1957

- Matchless 600 ccm Twin "GII"                                                                                   1956 - 1957

NORTON

- Norton 500 ccm Twin " Dominator 88"                                                                   1957

- Norton 600 ccm Twin " Dominator 99"                                                                   1957

PANTHER

- Panther 250 ccm "Stroud"                                                                                            1951 - 1954

- Panther 350 ccm "Stroud"                                                                                            1951 - 1954

- Panther 350 ccm "75"                                                                                                    1947 - 1957

- Panther 600 ccm "100"                                                                                                 1950 - 1951

TRIUMPH

- Triumph 350 ccm "3T De Luxe"                                                                                 1949 - 1951

- Triumph 500 ccm "Speed Twin 5TAC"                                                                     1949 - 1952

- Triumph 500 ccm "Tiger 100"                                                                                    1949 - 1957

- Triumph 500 ccm "TR5 Trophy"                                                                                1949 - 1957

- Triumph 650 ccm "TR6 Trophy"                                                                                1956 - 1957

- Triumph 650 ccm "Thunderbird 6TAC"                                                                   1950 - 1953

- Triumph 650 ccm "Tiger 110"                                                                                      1954 - 1957
































Das Original Produkt von der Firma: PPHU  J. Tomaszewski - Polska





Made in Poland





Ø Die Masse:

• Länge zusammen mit Ritzel  180,00 mm
• Breite  76,00 mm

Ø Technische Daten:

• Spannung 12V
• 3 Phasen - Drehstromgenerator
• Ladestrom 14,4V ohne Last bei 1200U/min
• Ladestrom 14,4V unter Last 60W bei 2100U/min
• Masse Minus ( - )

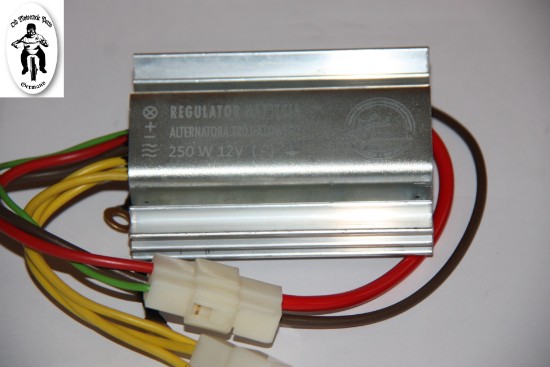

• Elektronische Regler 12V/250W genau für das "Dynamo L/5" abgestimmt.

Ø Technische Anforderungen:

• Batterie 12V ab 3,2Ah bis 14Ah
• Masse Minus ( - )
• Gel oder Säure Batterie
• Hauptscheinwerfer 12V - 45/55W
• Standlicht vorne Minimum 12V/5W
• Abblendlicht hinten max. 12V/5W
• Stop max. 12V/10W
• Tacho Minimum 12V/2W
• Sicherung 15A bei der Lieferung enthalten





►Unser Batterie Empfehlung: Yuasa YB 12AL-A2

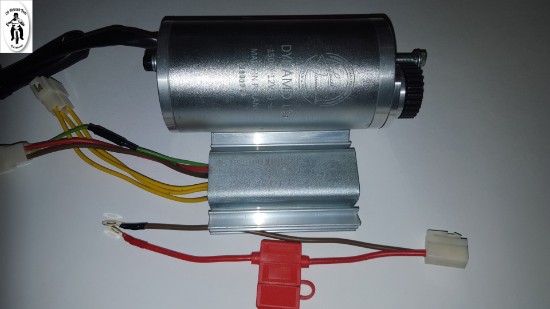

► In Lieferung enthalten:

- Dynamo L/5
- Elektronische Regler

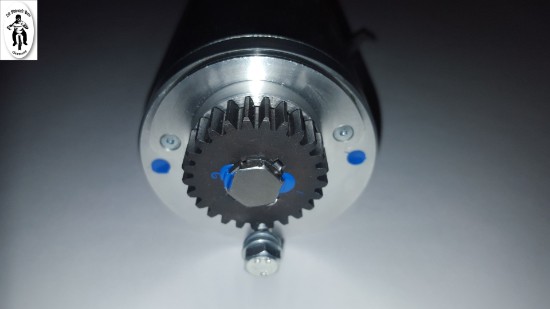

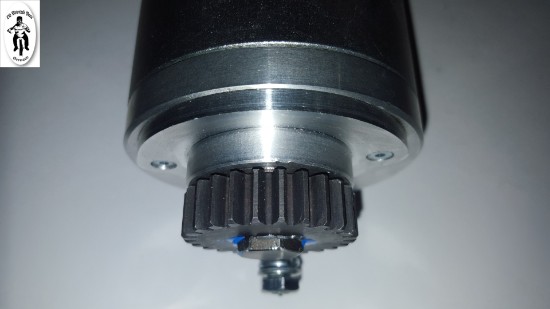

- Ritzel
- Diverse Stecker
- Sicherungen
- Garantiekarte
- Betriebsanleitung
- Verpackung


Preise:

Art.Nr: 00 5659 33L/5 61 - Dynamo L/5 - 12V/100W - 440,00 €


Art.Nr: 00 5658 33L/5 62 - ( Ersatz ) Elektronische Regler - 55,00 €


Art.Nr: 00 5659 33L/5 61Z - ( Ersatz ) Ritzel - 38,00 €


Garantie:

2 Jahre Hersteller Garantie ab Kaufdatum.


Betriebsanleitung zu Downloaden:





Deutsch - Englisch Betriebsanleitung Dynamo L-5 -- English - German Operating Instructions Dynamo L-5.pdf
Download
