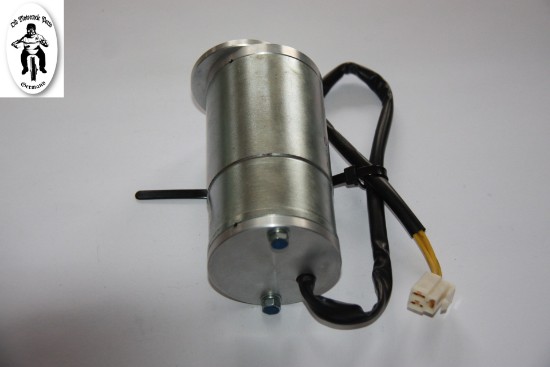

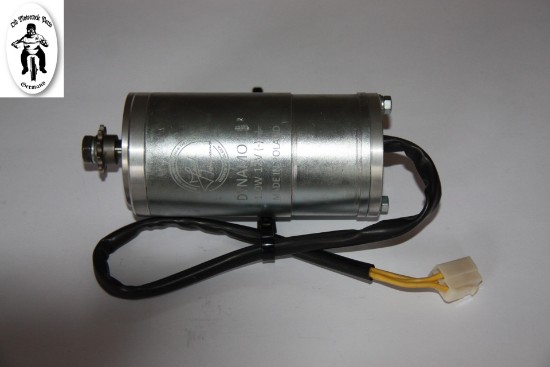

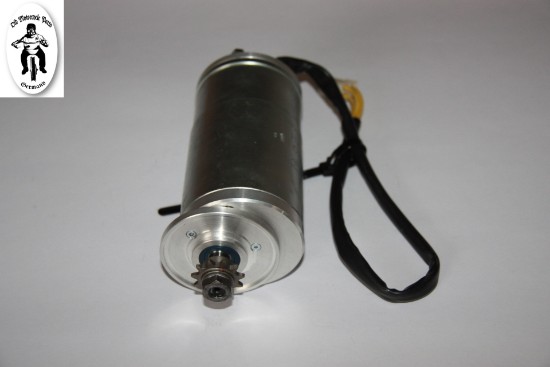

                                      "Dynamo L/2" - Generator - Alternator 12V/100W






                 The replacement for the original Lucas E3L alternator

                                                 Number.:20010, 20036







 Installation options for the following motorcycles:

PRODUCER:                                                                                                                 YEAR:



ARIEL

- Ariel 650 cm³ Twin FH "Huntmaster"                                                                      1954 - 1957

B.S.A

- B.S.A 250 cm³ S.V "C10"                                                                                              1949 - 1953

- B.S.A 250 cm³ "C11"                                                                                                      1949 - 1953

- B.S.A 500 cm³"A7" Twin                                                                                             1950 - 1957

- B.S.A 500 cm³ "A7 S.T"                                                                                                 1951 - 1954

- B.S.A 500 cm³ "A7 S.S"                                                                                                1954 - 1957

- B.S.A 650 cm³ Twin A10 "Golden Flash"                                                                 1950 - 1957

- B.S.A 650 cm³ Twin A10 "Road Rocket"                                                                   1955 - 1957





































Ø Bulks:

Length with gear: 7,28 inch
Width: 2,99 inch

Ø Technical data:

Voltage 12V
3 chamfering Generator
Charging 14,4V without load by 1200 RMP
Charging 14,4V under load 60W by 2100 RMP
Mass minus ( - )
Electronic controller 12V/250W is tailored for the Dynamo L/2

Ø Technical requirements :

Battery 12V from 3,2Ah to 14Ah
Ignition coil 12V
Gel battery or acid battery
Headlight 12V - 45/55W
Parking light front minimum 12V/5W
Low beam rear max. 12V/5W
Stop max. 12V/10W
Speedometer minimum 12V/2W
Fuse 15A included in the delivery


Electronic controller is included in delivery !

►Battery Recommendation Yuasa YB 12al-A2

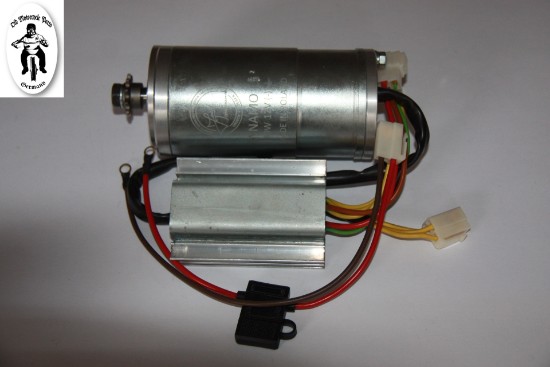

On delivery include:


- Dynamo L/2
- Electronic controllers

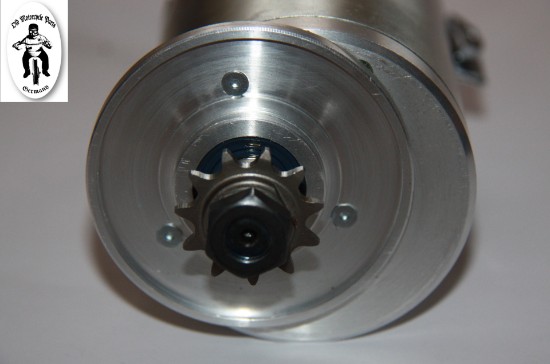

- Gear
- Various connectors
- Fuses
- Warranty card
- Operating Instructions
- Packaging




Prices:

Part Number: 00 5659 33L/2 61 - Dynamo L/2 - 12V/100W - 450,00 €

Part Number: 00 5658 33L/2 62 - ( reserves ) Electronic controller - 55,00 €

Part Number: 00 5659 33L/2 61G - ( reserves ) Gear - 38,00 €

Warranty:

2 years manufacturer warranty from date of purchase.


Operating Instructions for downloading.







Deutsch - Betriebsanleitung Dynamo L-2 -- English - Operating Instructions Dynamo L-2.pdf
→Download
