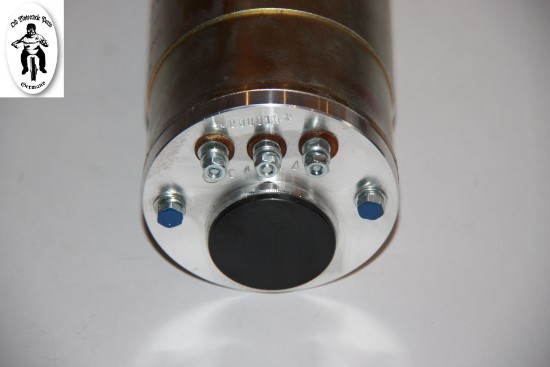

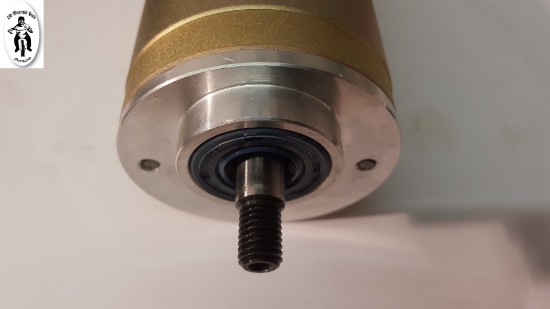

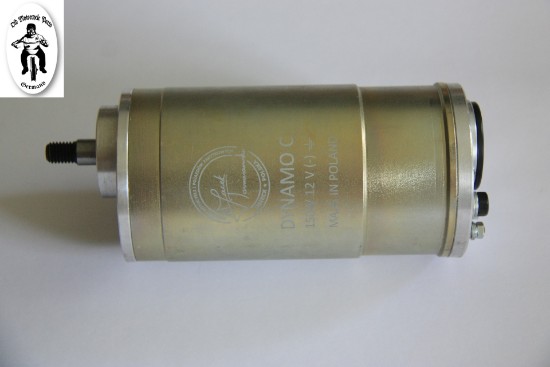

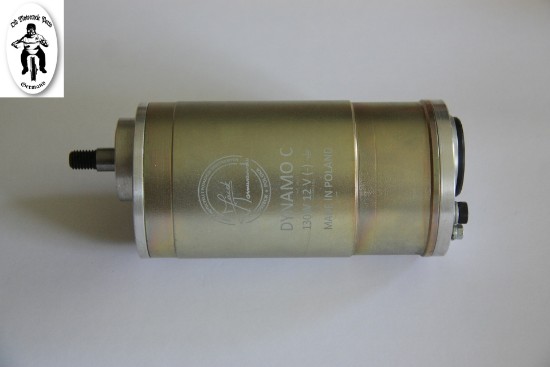

                                 "Dynamo C" - Generator - Alternator 12V/130W - 150W






                           The replacement for the original G 414 alternator

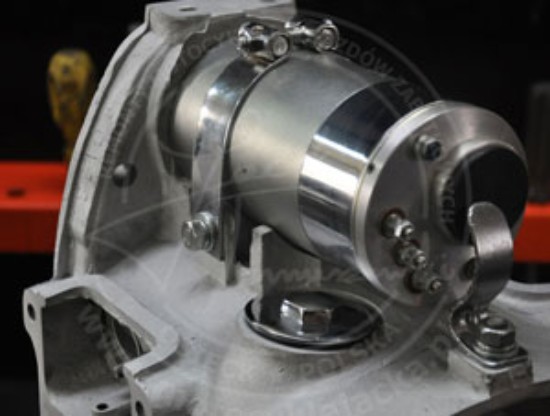

 Installation options for the following motorcycles:

PRODUCER:                                                                                                                 YEAR:

 M72

- M72 750 cm³                                                                                                                   1941 - 1957

K750

- K750 750 cm³                                                                                                                 1958 - 1976

- K650 650 cm³

- MW 750 cm³

Ural

- Ural M63 630 cm³                                                                                                        1964 - 1980

- Ural M66 650 cm ³                                                                                                       1970 - 1975

- Ural M61 600 cm³

Dnepr

- MT9   650 cm³

- MT12 750 cm³



All motorbikes with G414 alternator.




 130W





 150W




























Ø Bulks:

Length  7,48 inch
Width    3,15 inch

Ø Technical data:

Voltage 12V
3 chamfering Generator
Charging 13,7V without load by 900 RMP
Charging 14,2V under load 100W  by 2300 RMP
Mass minus ( - )

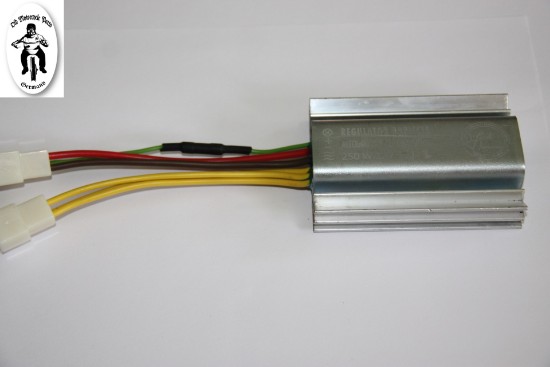

Electronic controller 12V/250W is tailored for the Dynamo C.

Ø Technical requirements :

Battery 12V from 3,2Ah to 14Ah
Mass minus ( - )
Ignition coil 12V - a value between 2.7 ohm and 3.5 ohm
Gel battery or acid battery
Headlight 12V - 45/55W or max 12V - 60/55W
Parking light front minimum 12V/5W
Low beam rear max. 12V/5W
Stop max. 12V/10W
Speedometer minimum 12V/2W
Fuse 15A included in the delivery



150W Dynamo are adapting the technical requirements Headlights 12V - 60 / 65W

Electronic controller is included in delivery !



On delivery include:

- Dynamo C
- Electronic controllers
- Various connectors
- Wedge
- Fuses
- Warranty card
- Operating Instructions
- Packaging


Prices:

Part Number: 00 5676 70C 21 - Dynamo C - 12V/130W - 380,00 €

Part Number: 00 5677 70C 21 - Dynamo C - 12V/150W - 400,00 €

Part Number: 00 5675 70C 22 - (Reserves) Elektronic controller - 55,00 €

Warranty:

2 years manufacturer warranty from date of purchase.


Operating Instructions for downloading.





Deutsch Betriebsanleitung Dynamo C -- English - Operating Instructions Dynamo C.pdf
→Download





Electronics plan Dynamo C - 12V-130-150W English.pdf
→Download
