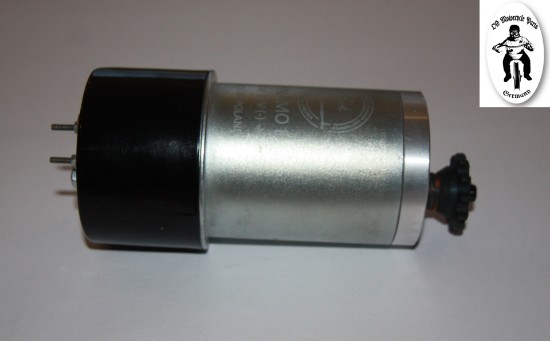

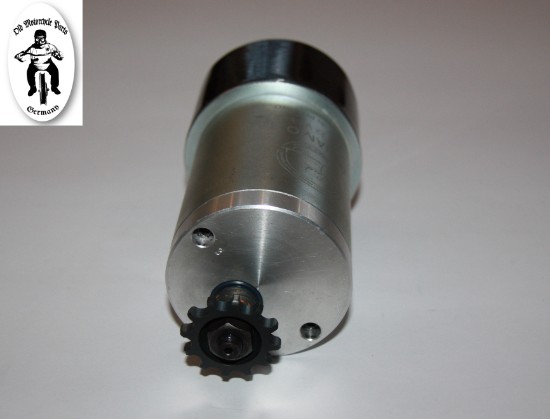

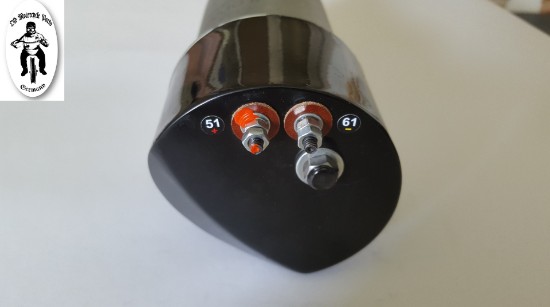

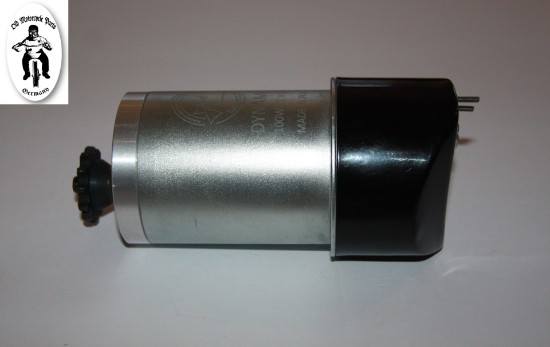

     "                               "Dynamo B/3" - Generator - Alternator 12V/150W






               The replacement for the original Bosch RD 45/6 alternator





 Installation options for the following motorcycles:

PRODUCER:                                                                                                                 YEAR:

BMW

- BMW 500 cm³ "R51"                                                                                                     1938 - 1941

- BMW 500 cm³ "R51/2"                                                                                                 1950 - 1951

- BMW 500 cm³ "R5"                                                                                                      1936 - 1937





























Ø Bulks:

Length with gear:  7,48 inch
Width: 2,99 inch
• Width of the rear cover: 3,46 inch
• Rear Cover Height: 2,20 inch


Ø Technical data:

Voltage 12V
3 chamfering Generator
Charging 14,4V without load by 1100 U/min
Charging 14,4V under load 60W  by 1700 U/min
Mass minus ( - )
Electronic controller 12V/250W is located under the cover

Ø Technical requirements :

Battery 12V from 3,2Ah to 14Ah
Mass minus ( - )
Ignition coil 12V - a value between 2.7 ohm and 3.5 ohm
Gel battery or acid battery
Headlight 12V - 40/45W or maximum 12V - 55/65W
Parking light front minimum 12V/5W
Low beam rear max. 12V/5W
Stop max. 12V/10W
Speedometer minimum 12V/2W
Fuse installed under the cover



► On delivery include:


- Dynamo B/3
- Electronic controllers
-
Fuse installed under the cover
- Gear
- Warranty card
- Operating Instructions
- Packaging


Prices:

Part Number: 00 2353 07B/3 10 - Dynamo B/3 - 12V/150W - 450,00 €

Part Number: 00 2350 07B/3 11 - ( reserves ) Elektronic controller - 70,00 €

Part Number: 00 2353 07B/3 10G - ( reserves ) Gear - 38,00 €

Warranty:

2 years manufacturer warranty from date of purchase.


Operating Instructions for downloading.





Deutsch - Betriebsanleitung Dynamo B-3 -- English - Operating Instructions Dynamo B-3.pdf
→Download







Elektrische Schaltplan - Elektrical Diagram Dynamo B-3.pdf
→Download
