MODERNE TECHNIK IM LOOK VON GESTERN

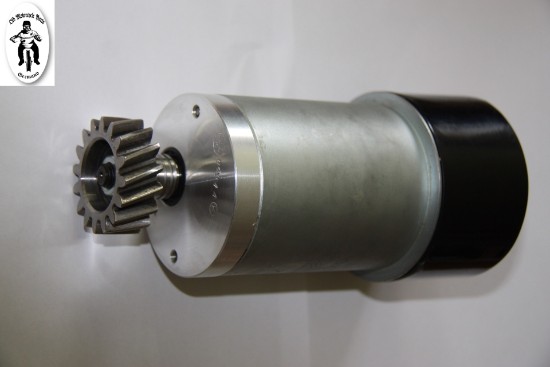

     "                               "Dynamo B/2" - Generator - Alternator 12V/150W






               The replacement for the original Bosch RD 30-45 alternator





 Installation options for the following motorcycles:

PRODUCER:                                                                                                                 YEAR:

BMW

- BMW 600 cm³ "R6"

- BMW 600 cm³ "R61"                                                                                                    1938 - 1941

- BMW 600 cm³ "R66"                                                                                                    1938 - 1941

- BMW 750 cm³ "R71"                                                                                                     1938 - 1941
























Ø Bulks:

Length with gear:  7,48 inch
Width: 2,99 inch

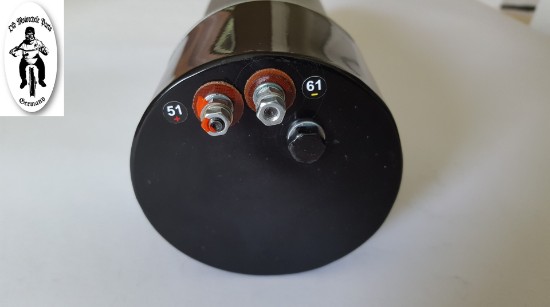

• Width of the rear cover: 3,46 inch
• Rear Cover Height: 2,20 inch


Ø Technical data:

Voltage 12V
3 chamfering Generator
Charging 14,4V without load by 1100 RPM
Charging 14,4V under load 60W  by 1700 RPM
Mass minus ( - )
Electronic controller 12V/250W is located under the cover

Ø Technical requirements:

Battery 12V from 3,2Ah to 14Ah
Mass minus ( - )
Ignition coil 12V - a value between 2.7 ohm and 3.5 ohm
Gel battery or acid battery
Headlight 12V - 40/45W or maximum 12V - 55/65W
Parking light front minimum 12V/5W
Low beam rear max. 12V/5W
Stop max. 12V/10W
Speedometer minimum 12V/2W
Fuse installed under the cover





► On delivery include:


- Dynamo B/2 with or gear depending on order

- Electronic controllers

- Gear

- Fuse installed under the cover

- Warranty card

- Operating Instructions

  - Packaging




Prices:


Part Number: 00 2353 07B/2 10 - Dynamo B/2 - 12V/150W - 450,00 €


Part Number: 00 2350 07B/2 11 - ( reserves ) Elektronic controller - 70,00 €


Part Number: 007474Z B/2 - ( reserves ) Gear  -  38,00 €


Warranty:

2 years manufacturer warranty from date of purchase.


Operating Instructions for downloading:





Deutsch - Betriebsanleitung Dynamo B-2 -- English - Operating Instructions Dynamo B-2.pdf
→Download







Elektrische Schaltplan - Elektrical Diagram Dynamo B-2.pdf
→Download
