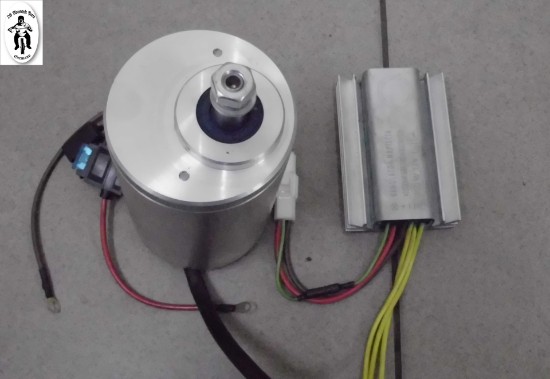

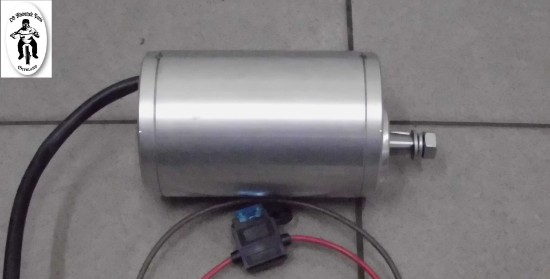

" "Dynamo Z" - Generator - Alternator 12V/150W
The replacement for the original Bosch REA 60/6 alternator
Installation options for the following motorcycles:
PRODUCER: YEAR:
ZÜNDAPP
-K 800 1933 - 1938
This Dynamo is built to order only!
The original produkt by Company PPHU J. Tomaszewski - Poland
Made in Poland
Ø Bulks:
• Lenght 00,00 mm
• Width 00,00 mm
•The bulks but areidentical as with orginal Bosch REA 60/6 alternator.
Ø Technical data:
• Voltage 12V
• 3 chamfering Generator
• Charging 14,4V without load by 1100 RMP
• Charging 14,4V under load 60W by 1700 RMP
• Mass minus ( - )
• Elektronic controller 12V/250W
Ø Technical requirements:
• Battery 12V ab 3,2Ah bis 14Ah
• Ignition coil 12V
• Gel Battery or acid battery
• Headlight 12V - 40/45W or max 12V - 55/65W
• Parking light front minimum 12V/5W
• Low beam rear max.12V/5W
• Stop max.12V/10W
• Speedometer minimum. 12V/2W
• Fuse 15A
►Electronic controller is included in delivery!
►On delivery include:
- Dynamo Z
- Elektronic controllers
- Fuse
- Warranty card
- Operating Instructions
- Packaging
Prices:
Part Number: 00 7373 07Z 10 - Dynamo Z - 12V/150W - 450,00 € + shipping costs
Part Number: 00 7370 07Z 11 - Elektronic controller - 55,00 € + shipping costs
Warranty:
2 years manufacturer warranty from date of purchase.
Operating Instructions for downloading.
